JSC-D6 COUNTING INDICATOR

JSC-D6 COUNTING INDICATOR

Share:

DESCRIPTION:

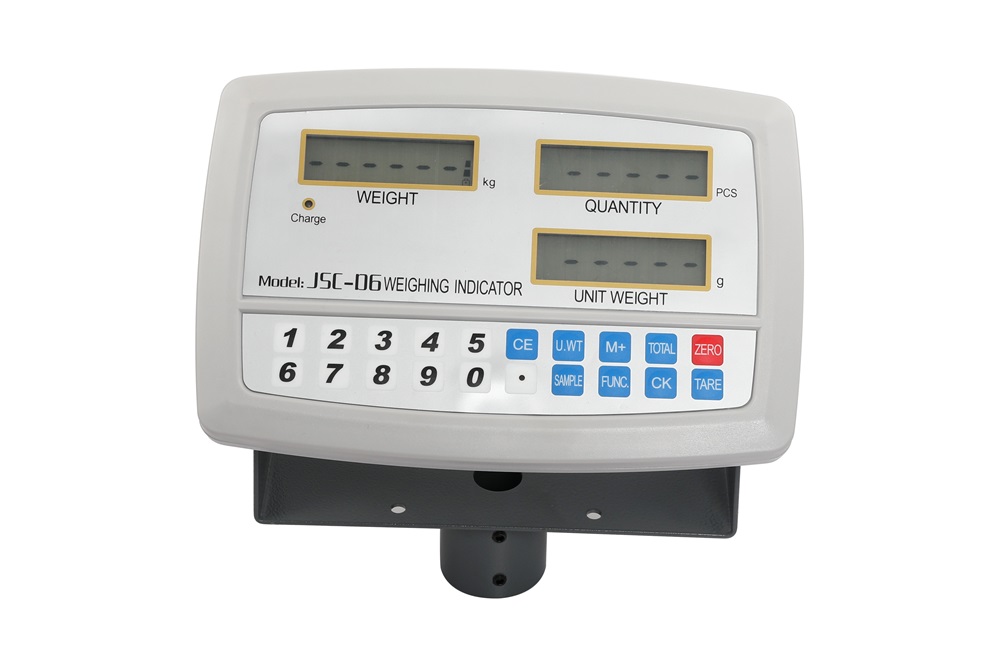

JSC-D6 DIGITAL COUNTING INDICATOR
Application for Logistics scales,Electronic platform scale,truck scale etc

Item Model: JSC-D6
FOB Port: Shanghai
MOQ: 1 pieces
Lead Time: 3days

Product Details

JSC-D6 counting indicator adopts fast speed, high precision ∑-Δ A/D conversion technology and special anti-vibration software technology, widely applied in electronic platform scale,electronic floor scale, mechanic-electronic conversion scale and so on alike static weighing system equipped with 1~4 load cell.

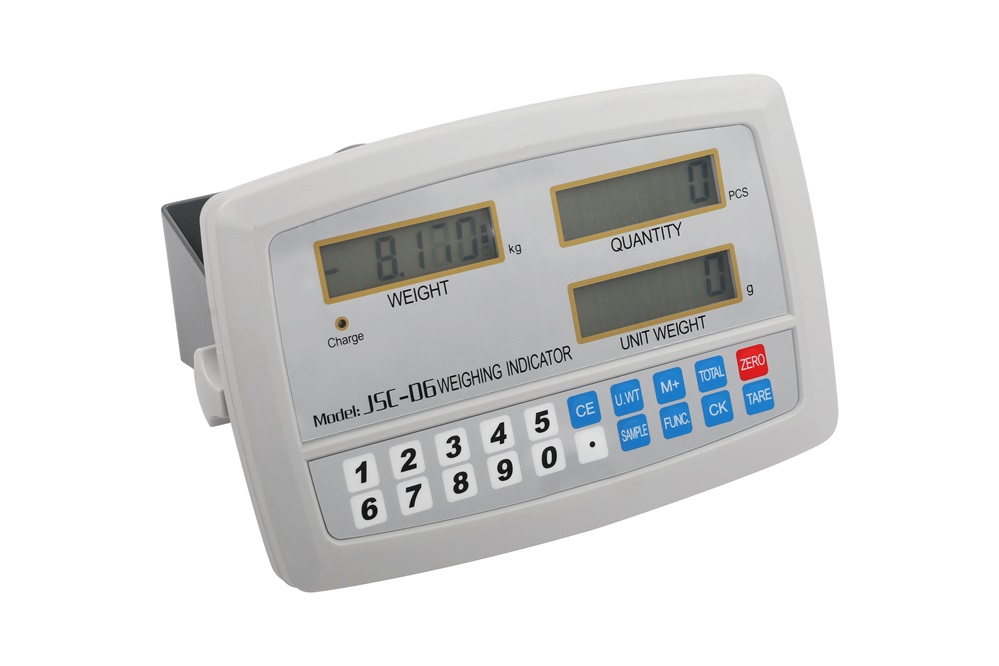

Display 6 digits LCD Display
Accuracy Class III n=3000e
A/D Converting speed 10SPS
Stimulating voltage +3.3VDC
Weight unit Kg
Max division 15000d
Load capacity 4piece 350Ω load cell at most

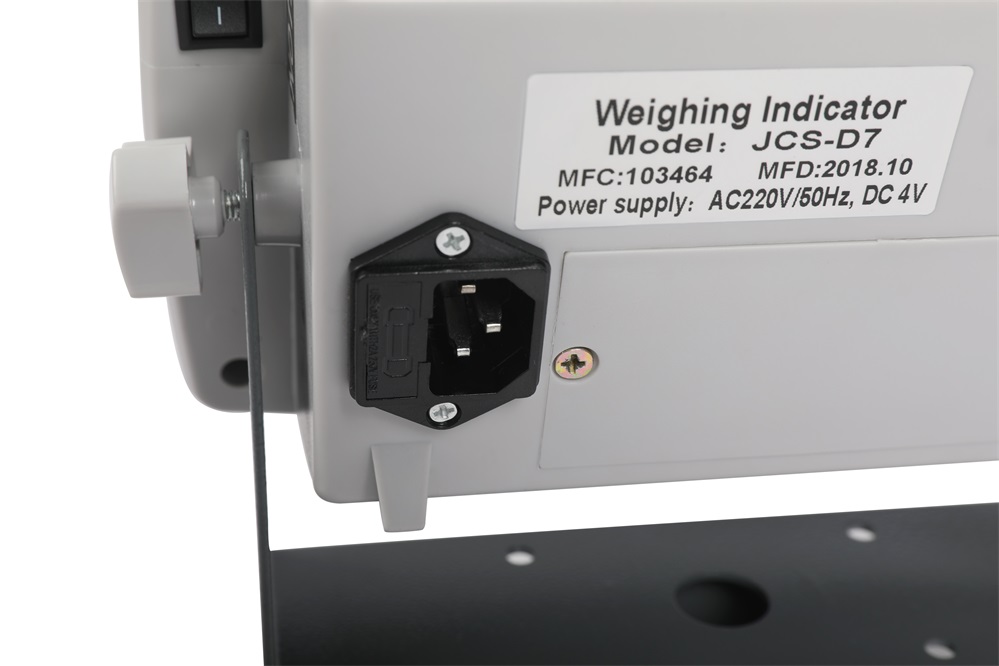

power supply AC110~220V,50~60HZ/Built-in lead acid battery 4V4Ah
Operation temperature -10℃~+40℃
Humidity ≤85%R.H
Battery usage time 100hour(Continuous operation, load 4 350Ω analog sensors)

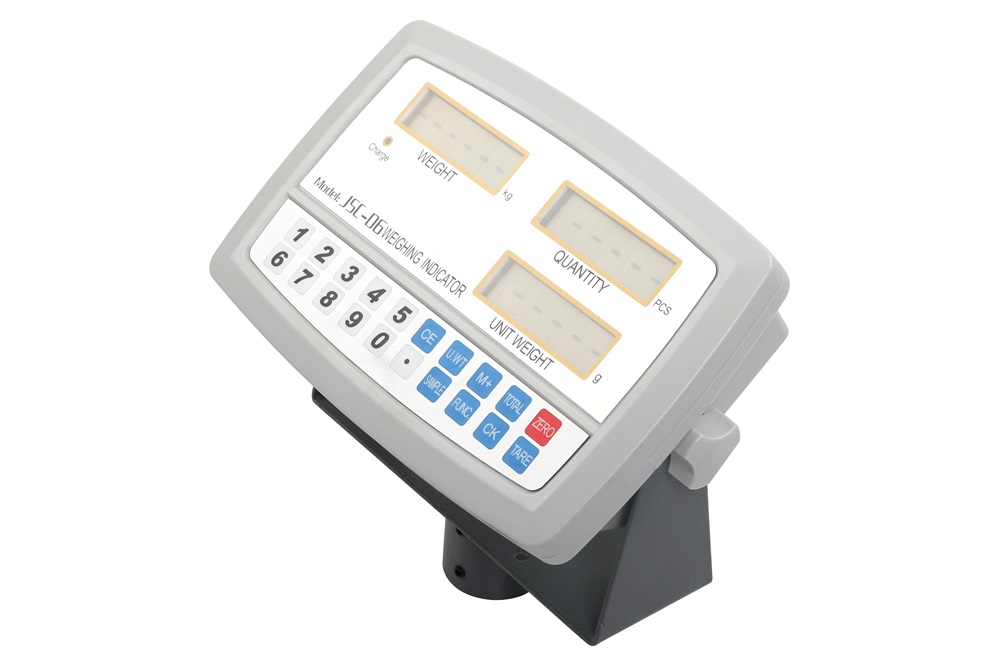

Key 10digital key(0~9),10 function key
Communication Interface RS232C, baud rate 1200/2400/4800/9600
Application for Logistics scales,Electronic platform scale,

truck scale etc
